Military Grade Industrial Control Computer All-in-one 49 inch Embedded Dustproof Capacitor TouchScreen Manufacturer
Capacitor TouchScreen Manufacturer: The Core Engine for Intelligent Control
With the continuous advancement of industrial automation and smart manufacturing, the Capacitor TouchScreen Manufacturer has gradually become a core component for equipment control and data processing across various industries. It not only possesses strong compatibility and flexibility but also provides one-stop intelligent control solutions for factories, healthcare, urban infrastructure, and many other fields.
Capacitor TouchScreen Manufacturer Enables Intelligent Multi-Scenario Applications
The Capacitor TouchScreen Manufacturer equipment is available in two forms: embedded and surface-mounted, allowing users to flexibly select based on specific application scenarios.
The embedded design closely integrates with equipment structures, saving space and making it suitable for industrial workshops and embedded terminals. The surface-mounted type offers easy installation and maintenance, making it more suitable for commercial and medical environments.
It supports multiple mainstream operating systems, including Windows, Linux, and Android, and is compatible with various configuration software, enabling core functions such as data acquisition, logic control, and remote communication with ease.
For the Android system, it supports customized development, providing complete system call APIs and reference code, significantly lowering the development threshold and accelerating equipment deployment.
Seamless Flat-Panel Design for Enhanced Stability and Durability
The Capacitor TouchScreen Manufacturer adopts a seamless flat-panel structure, excelling at preventing the intrusion of dust and water droplets. This ensures stable operation even in harsh environments with high humidity or high dust levels. The fully enclosed structure enhances the overall protection rating and extends the service life.
Additionally, its highly integrated design is equipped with abundant interfaces, allowing for the expansion of various industrial peripherals to meet high-performance control needs in factory automation, financial terminals, smart healthcare, self-service equipment, and other fields.
Choosing a high-performance Capacitor TouchScreen Manufacturer not only enhances equipment control capabilities but also ensures system stability and reliability. In the wave of Industry 4.0 and smart city construction, it has become an indispensable force driving the intelligent upgrade of various industries.
| LCD Panel Parameters | Screen Size | 49 Inch |

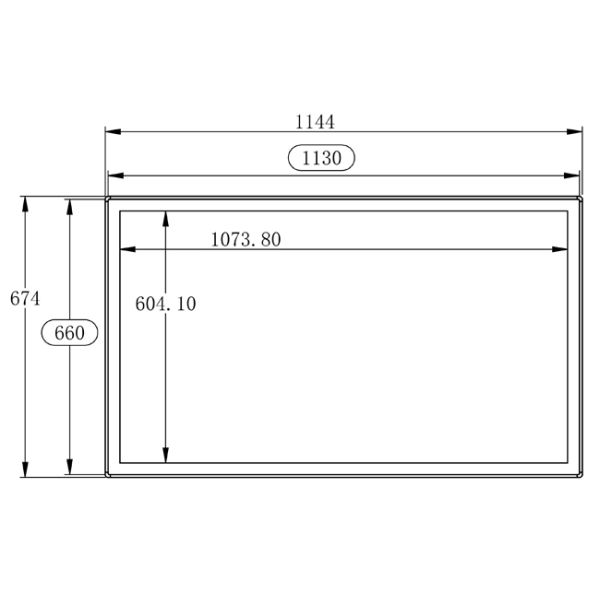

| Display Area | 1073.8 mm.(Height) X 604.1 (Width)mm. |
| Aspect Ratio | 16 : 9 | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 |
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC |
| Brightness | 300cd/m² | 400cd/m² |
| Contrast Ratio | 1200 : 1 | 1000 :1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) |
| Response Time | 8ms | 6ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| Built-in Speaker | Power | 2 x 5W |
Configuration PCB Android Built-in
(Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz |
| GPU | Mali-T764 | Mali-G52 |
| RAM | 2GB | 4GB |
| ROM | 32GB | 32GB |
| Android System | Android 10.0 | Android 11.0 |
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps |
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 |
| Bluetooth | 4.2 | 5 |
| Interface | USB2.0 x 2 | USB2.0 x 2 |
| HDMI IN x 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 90 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Package Size | Device Dimensions | 1144 X 674 X 66.9 mm. |
| Net Weight | 29 Kilogram |
| Package Size | 137.5 X 14.5 X 84.5Centimeter |
| Gross Package Weight per Unit | 32 Kilogram |
if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
